Two camera system for elimination of process light
// Electronics and Electrotechnology // Sensors and Measuring Instruments
Ref-Nr: 16158
Abstract
The invention concerns process monitoring in manufacturing.

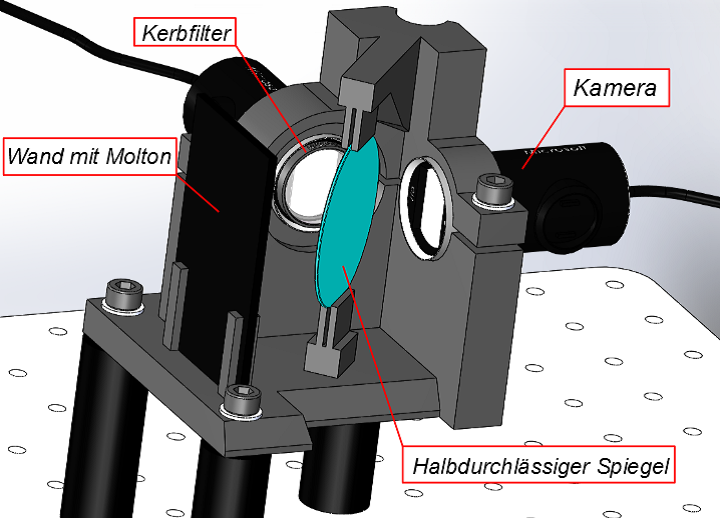

Fig. 1: CAD model of the laboratory test
background
In processes such as laser cutting, for example, tilted components can cause collisions with a processing instrument. Laser triangulation can be used to detect obstacles.
Process light prevents the reliable detection of laser lines and thus the detection of obstacles.
Innovation / Solution
Process light is to be separated from interfering light by means of two cameras. One laser line remains as the differential image. The congruent arrangement of the cameras enables very fast image processing. The use of a notch filter in the range of the measuring laser wavelength also allows the filtering of very bright process light. Fig. 1 shows a laboratory setup.Benefits
Measurement under process light becomes possible
More complex patterns can be recognized besides lines
Advantageously applicable for laser beam cutting
fields of application
Process monitoring/manufacturingYou can close this window. You can find your search results in the previous window
